| Model |
IFP1623 |
| Product Name |

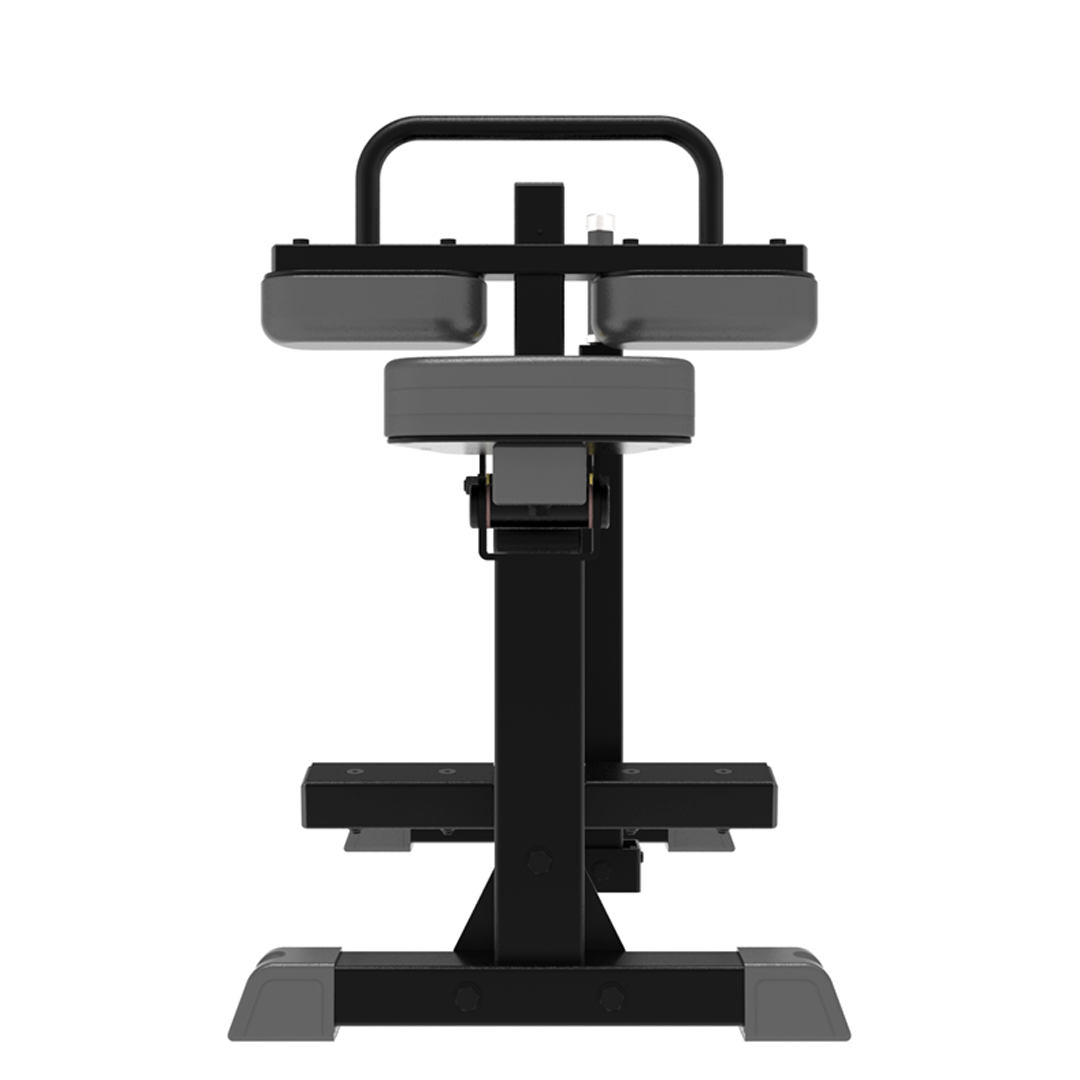

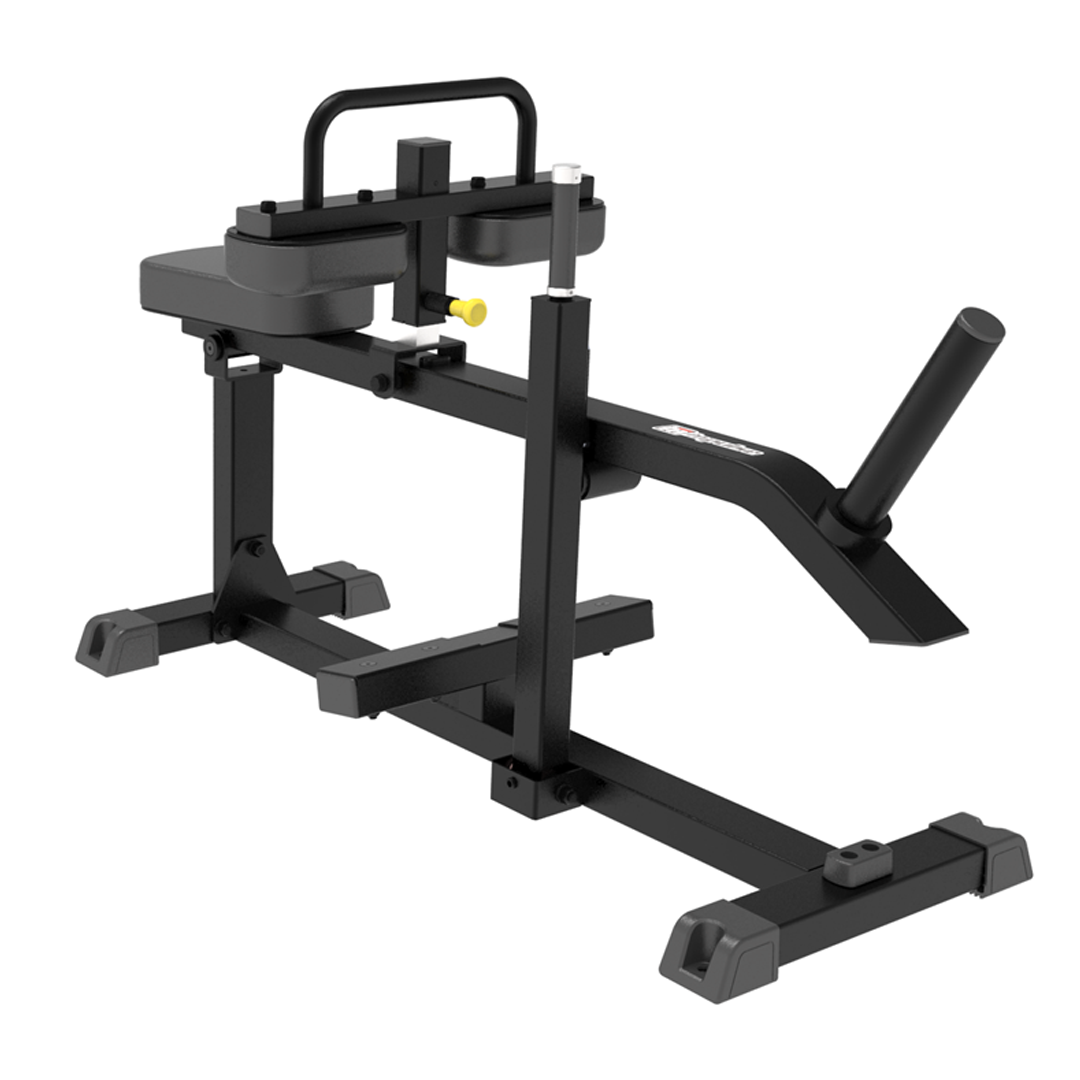

Seated Calf Raise |
| Series |
IFP1 |
| Security |
ISO20957, GB17498-2008 |
| Max User Weight |
150 kg |
| Applicable Height Range |
155 cm – 195 cm |
| Resistance |
Plate Loaded |
| Function |
Monofunctional |
| Maximum Load |
100 kg |
| Targeted Muscle |
Gastrocnemius Muscle, Soleus |
| Targeted Body Part |
Lower Limbs |
| Tube Specification – Function Part |
□50.8*2.5, □50.8*76.2*2.5 |
| Tube Specification – Connection Part |
□50.8*76.2*2.5 |
| Tube Specification – Bottom Part |
□50.8*76.2*2.5 |
| Tube Specification – Regulating Tube Part |
□38.0*2.0 (201 Stainless Steel) |
| Tube Specification – Handle Tube Part |
φ25.2*2.5 |
| Pedal |
3mm (Anti-skid Paint Coated) |
| Toner |
BG304-331, DG506 |
| Upholstery Colors |
Black + Patterned Leather + PVC |
| Plastic Color |
Black/Cold Gray/Yellow |
| Regulating Part Color |
Yellow |
| Leg Cushion Adjustment |
Draw-out Elastic Bolt + 7 level |
| Leg Cushion Adjustment Range |
150 mm |
| Leg Cushion Specification |
230*150*70 mm |
| Handle Bar Type |
Circular Tube Handle |
| Handle Bar Cover |
TPV (Aluminum baffle ring and aluminum head) |
| Standardized Parts |
Medium Carbon Steel (8.18 grade, Zinc Plating-black) |
| Product Dimension |
1368*566*849 mm |
| Net Weight |
38.5 kg |
| Gross Weight |
43 kg |
| Number of Packages |
1 |
| Packaged Form |
Carton |
| Package Size and Weight |
1575*595*200 |
| 20′40 HQ40 GP |
297 |
