| Model |
IFP1615 |
| Product Name |

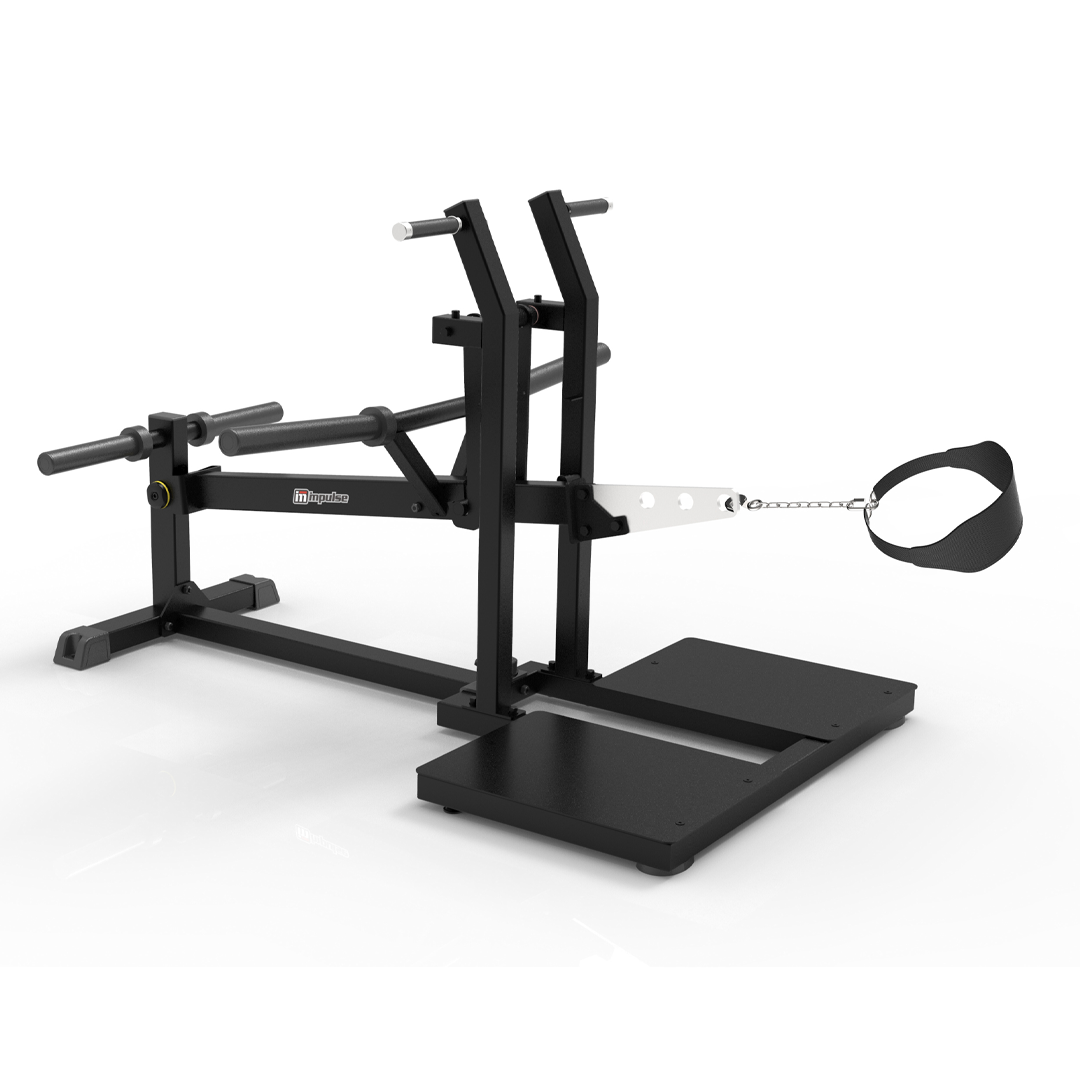

Belt Squat |
| Series |
IFP1 |
| Security |
ISO20957, GB17498-2008 |
| Max User Weight |
150 kg |
| Applicable Height Range |
155 cm – 195 cm |
| Resistance |
Plate Loaded |
| Function |
Monofunctional |
| Maximum Load |
175 kg * 2 |
| Targeted Muscle |
Quadriceps Femoris, Biceps Femoris, Gluteus Maximus |
| Targeted Body Part |
Lower Limbs |
| Tube Specification – Function Part |
□50.8*2.5, □50.8*76.2*2.5 |
| Tube Specification – Connection Part |
□50.8*76.2*2.5 |
| Tube Specification – Bottom Part |
□50.8*2.5, □50.8*76.2*2.5, □38*2.5 |
| Tube Specification – Handle Tube Part |
φ25.2*2.5 |
| Pedal |
3mm (Anti-skid Paint Coated) |
| Toner |
BG304-331, DG506 |
| Plastic Color |
Black/Cold Gray/Yellow |
| Handle Bar Type |
Circular Tube Handle |
| Handle Bar Cover |
TPV (Aluminum baffle ring and aluminum head) |
| Standardized Parts |
Medium Carbon Steel (8.15 grade, Zinc Plating-black) |
| Main Bearing |
GB2766205-2ZC3 |
| Hook |
Yes |
| Barbell Plate Storage Bar |
2 |
| Barbell Bar Diameter |
50 mm |
| Maximum Storage Weight of Single Barbell Plate Storage Bar |
100 kg |
| Product Dimension |
1615*1250*1032 mm |
| Net Weight |
77.5 kg |
| Gross Weight |
84 kg |
| Number of Packages |
1 |
| Packaged Form |
Carton |
| Package Size and Weight |
1280*770*280 |
| 20′40 HQ40 GP |
216 |
