| Model |
IFP1604 |
| Product Name |

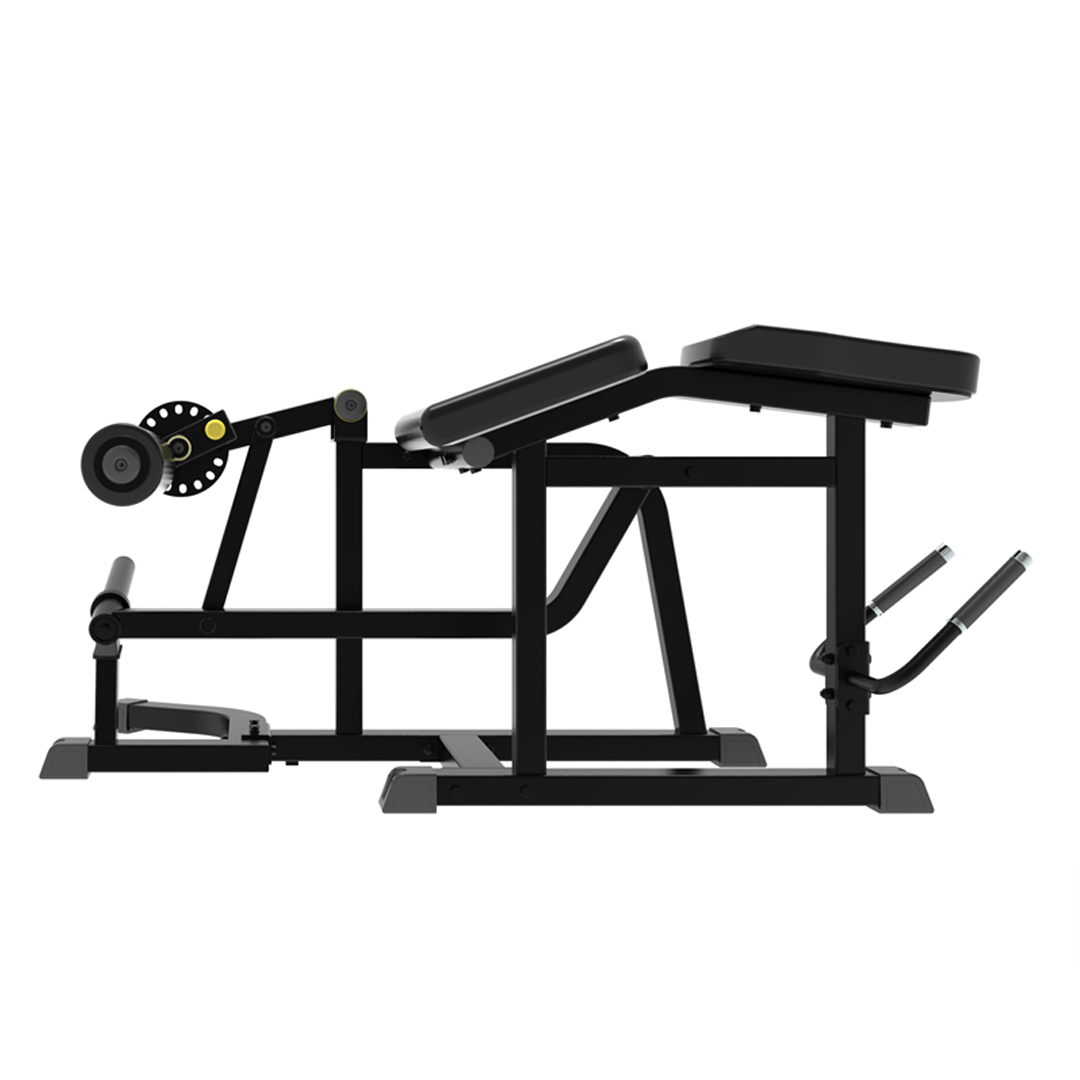

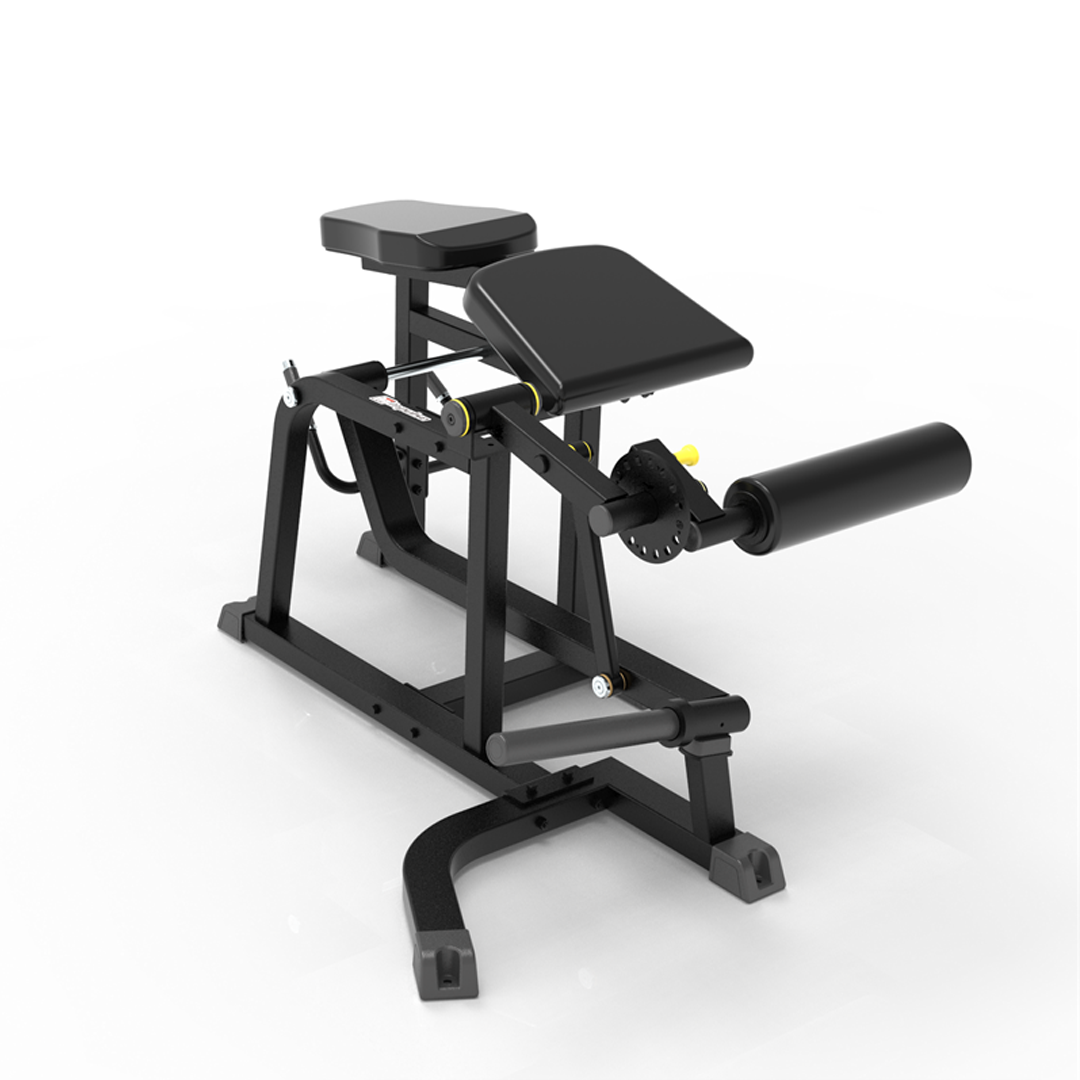

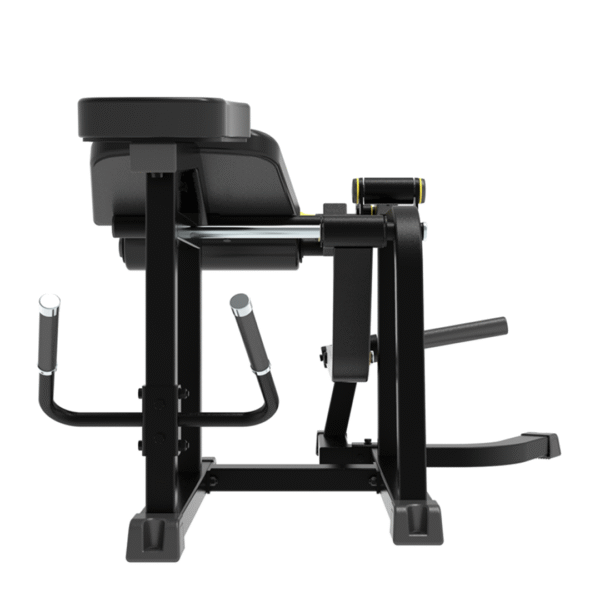

Prone Leg Curl |
| Series |
IFP1 |
| Security |
ISO20957, GB17498-2008 |
| Certification/Patent |
2.01021E+11 |
| Max User Weight |
150 kg |
| Applicable Height Range |
155 cm – 195 cm |
| Resistance |
Plate Loaded |
| Function |
Monofunctional |
| Maximum Load |
150 kg |
| Targeted Muscle |
Hamstring Muscles, Gastrocnemius Muscle |
| Targeted Body Part |
Legs |
| Tube Specification – Function Part |
□50.0*100.0*2.5, φ50.8*2.5, □50.8*76.2*2.5 |
| Tube Specification – Connection Part |
□50.8*76.2*2.5, φ50.8*2.5 |
| Tube Specification – Bottom Part |
□50.8*76.2*2.5 |
| Tube Specification – Handle Tube Part |
φ25.2*2.5 |
| Toner |
BG304-331 |
| Upholstery Colors |
Black + Patterned Leather + PVC |
| Upholstery Stitching |
Black + Single stitches |
| Upholstery Stuffing |
Polymer + Foams |
| Plastic Color |
Black/Cold Gray/Yellow |
| Foam Adjustment |
Draw-out Elastic Bolt + 16 level |
| Foam Adjustment Range |
360°, 22.5° |
| Thickness of Back Cushion |
70 mm |
| Leg Cushion Specification |
φ129*466 |
| Handle Bar Type |
Circular Tube Handle |
| Handle Bar Cover |
TPV (Aluminum baffle ring and aluminum head) |
| Standardized Parts |
Medium Carbon Steel (8.12 grade, Zinc Plating-black) |
| Main Bearing |
GB2766205-2ZC3 |
| Barbell Plate Storage Bar |
No |
| Barbell Bar Diameter |
50 mm |
| Product Dimension |
1623*1202*798 mm |
| Net Weight |
75.9 kg |
| Gross Weight |
81.5 kg |
| Number of Packages |
1 |
| Packaged Form |
Carton |
| Package Size and Weight |
1115*885*290 |
| 20′40 HQ40 GP |
208 |
